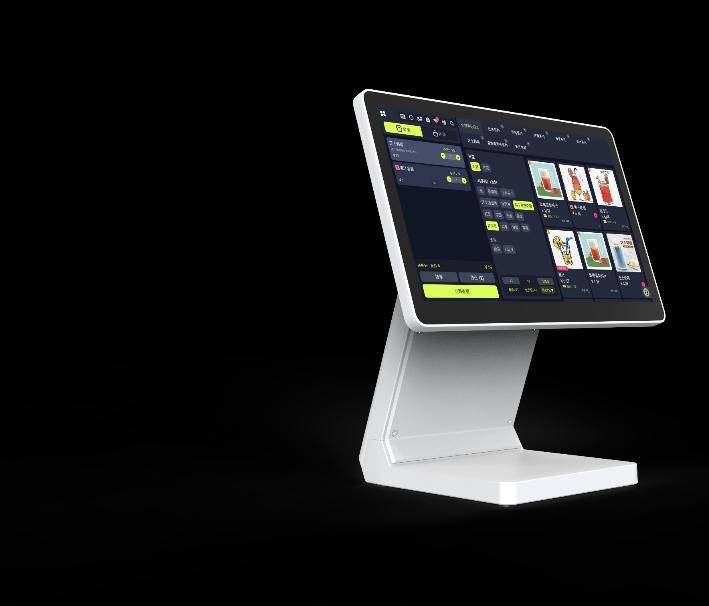

KBM-HD22 Smart POS Terminal

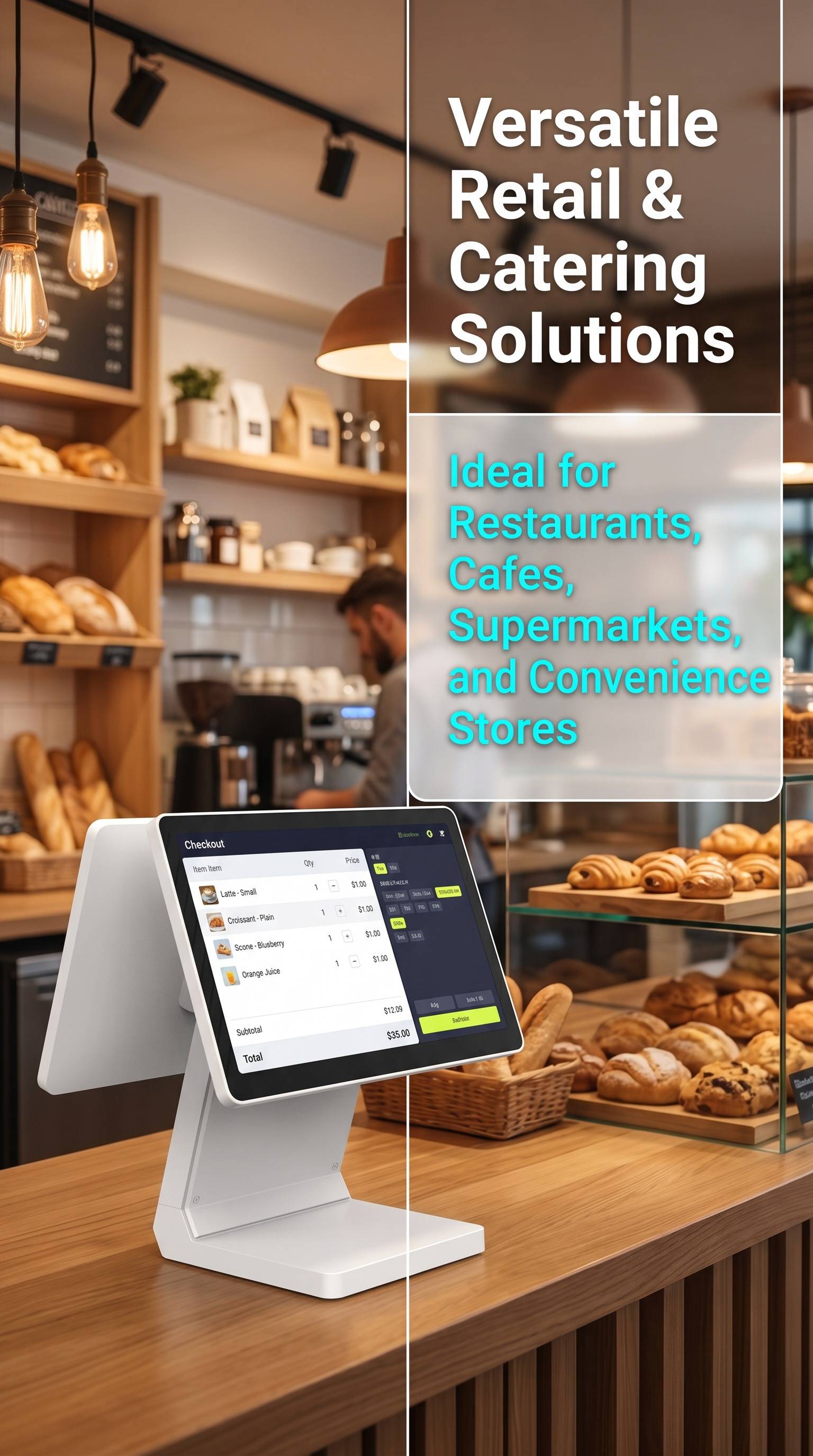

11.6" + 3.5" dual-screen Android POS terminal with built-in 1D/2D barcode scanner—all-in-one checkout solution. RK3568 2.0GHz quad-core, 2+16G memory. Main 11.6" capacitive touchscreen + 3.5" customer-facing display. WiFi, BT4.2, Ethernet. Full ports: USB×4, RJ45, RJ12 (cash drawer), OTG. Compact footprint, white textured body, wide-temp support (-10~45℃). Ideal for retail, convenience stores, and self-service kiosks where space is tight.
Contact for Quote
En Stock11.6" + 3.5" dual-screen Android POS terminal with built-in 1D/2D barcode scanner—all-in-one checkout solution. RK3568 2.0GHz quad-core, 2+16G memory. Main 11.6" capacitive touchscreen + 3.5" customer-facing display. WiFi, BT4.2, Ethernet. Full ports: USB×4, RJ45, RJ12 (cash drawer), OTG. Compact footprint, white textured body, wide-temp support (-10~45℃). Ideal for retail, convenience stores, and self-service kiosks where space is tight.

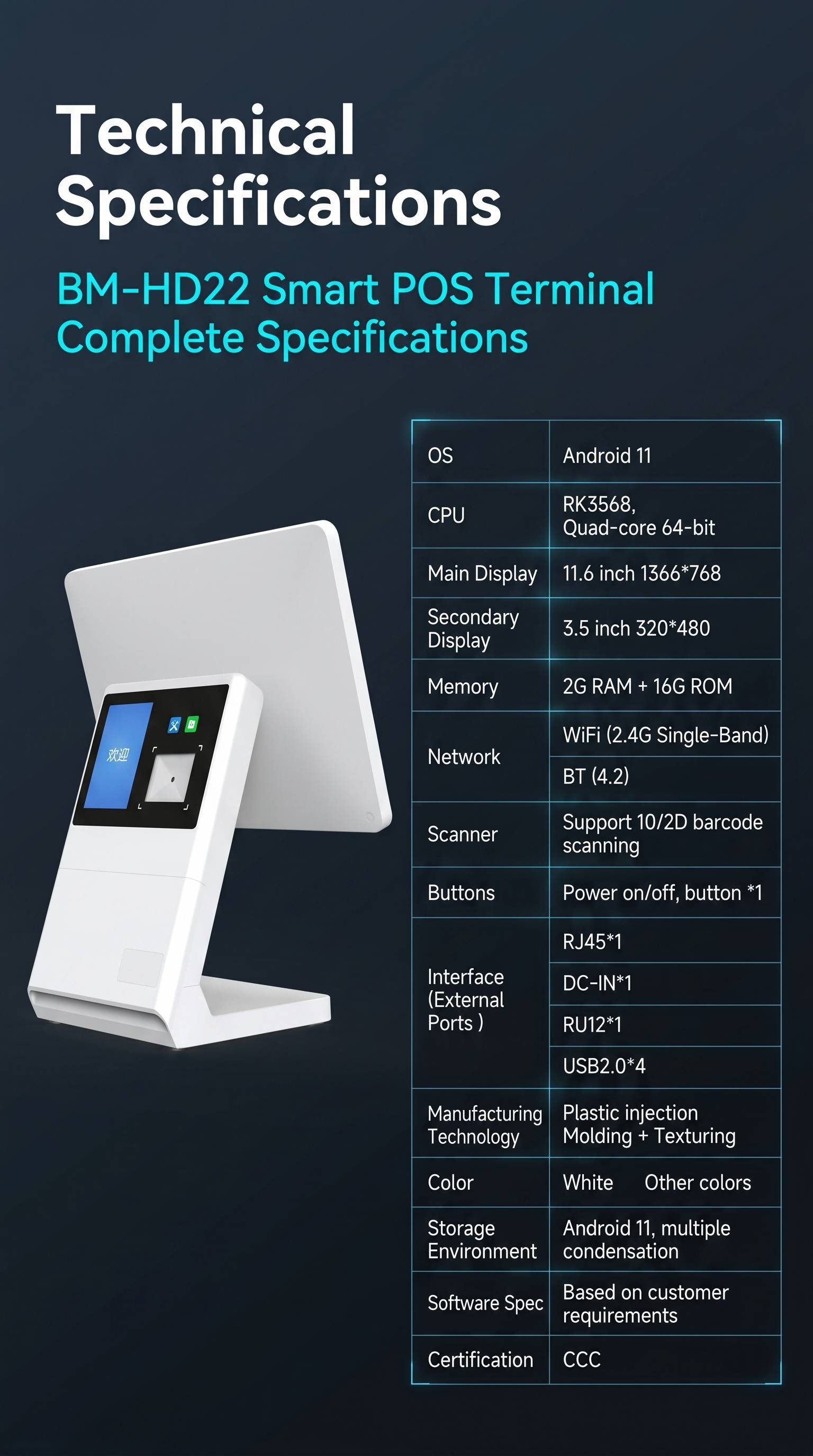

| Operating System | Android11 |
|---|---|

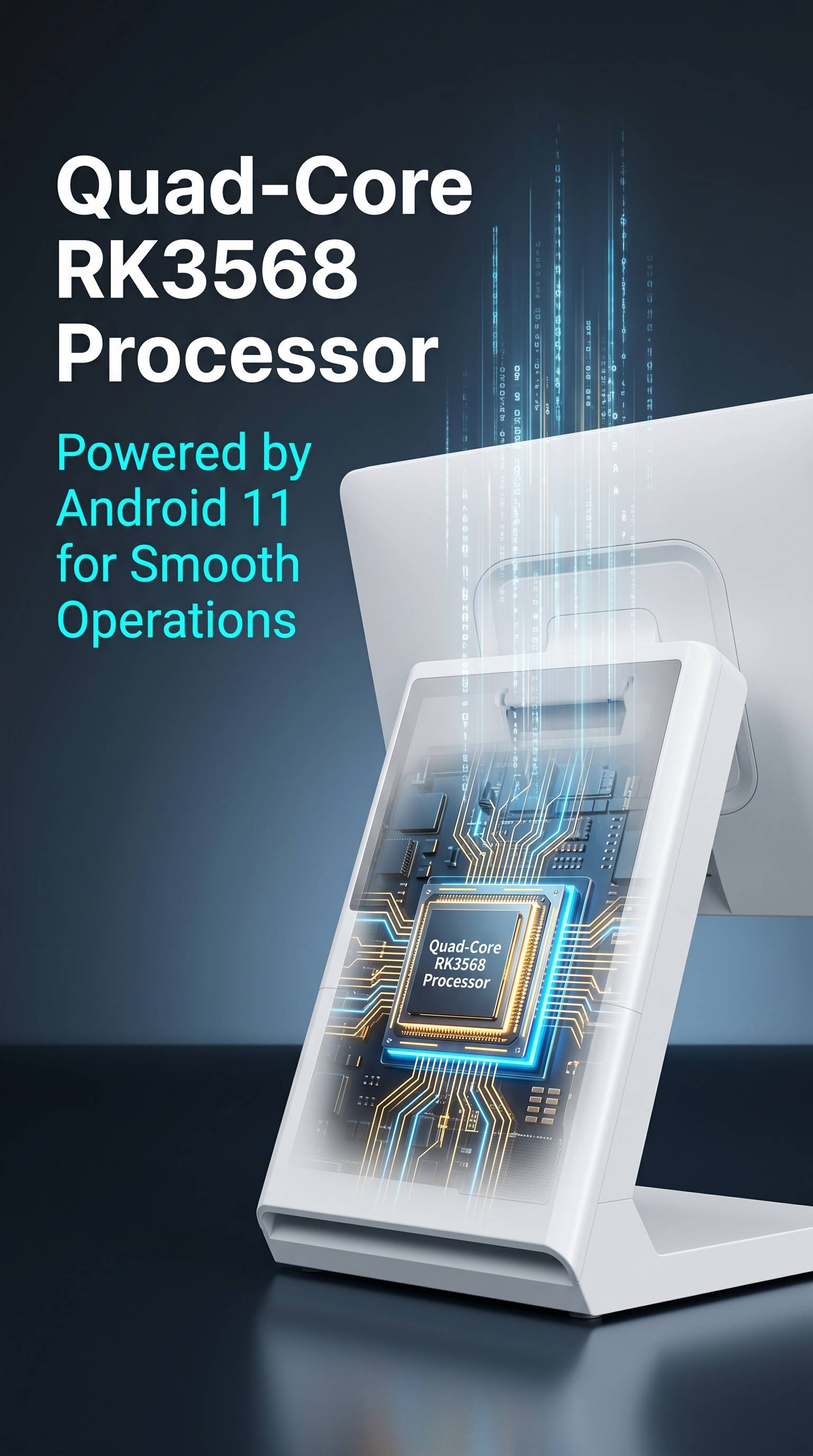

| CPU | RK3568, quad-core 64-bit, Coretex-A55, up to 2.0GHz |

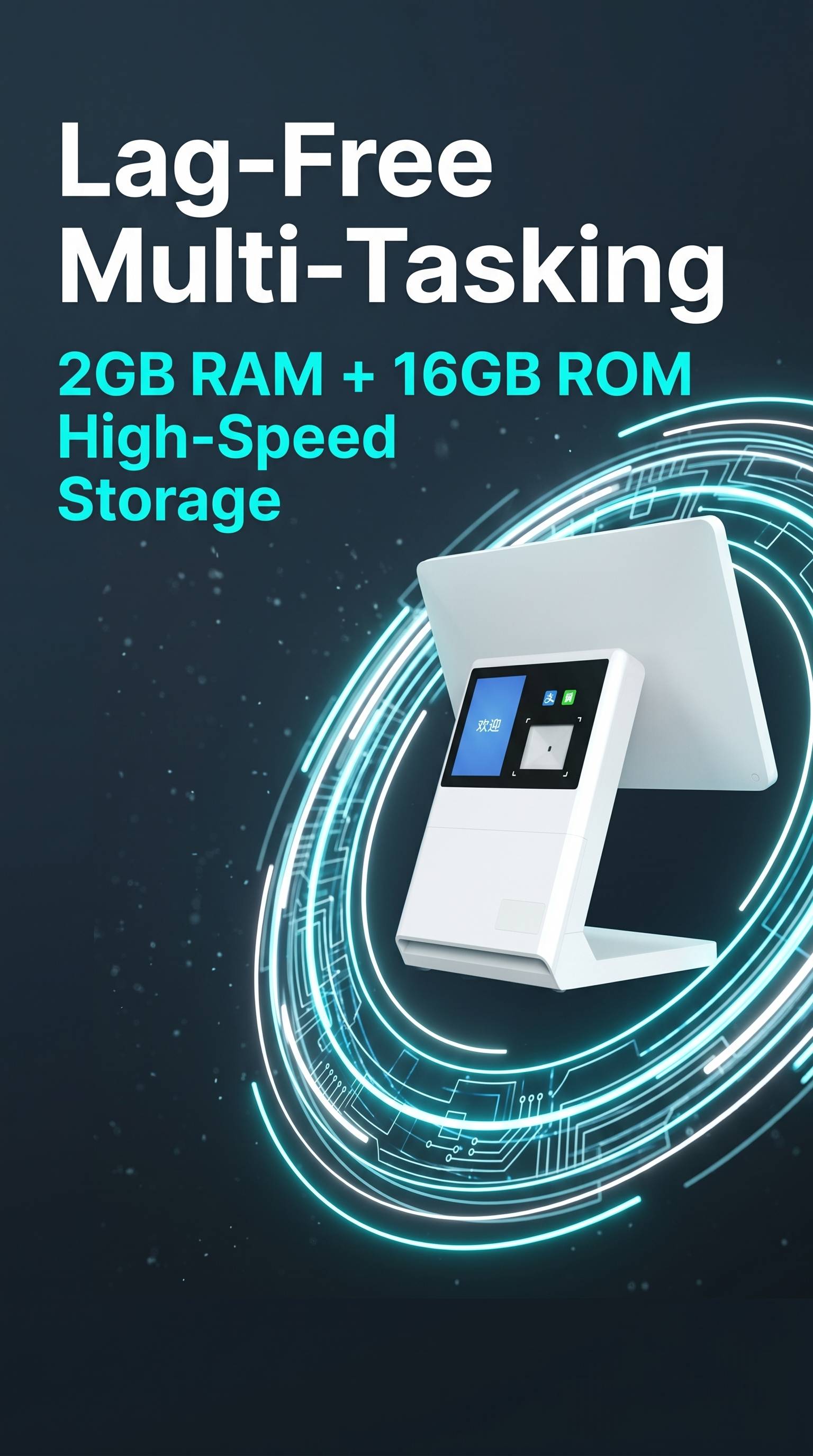

| Memory | 2G RAM + 16G ROM |

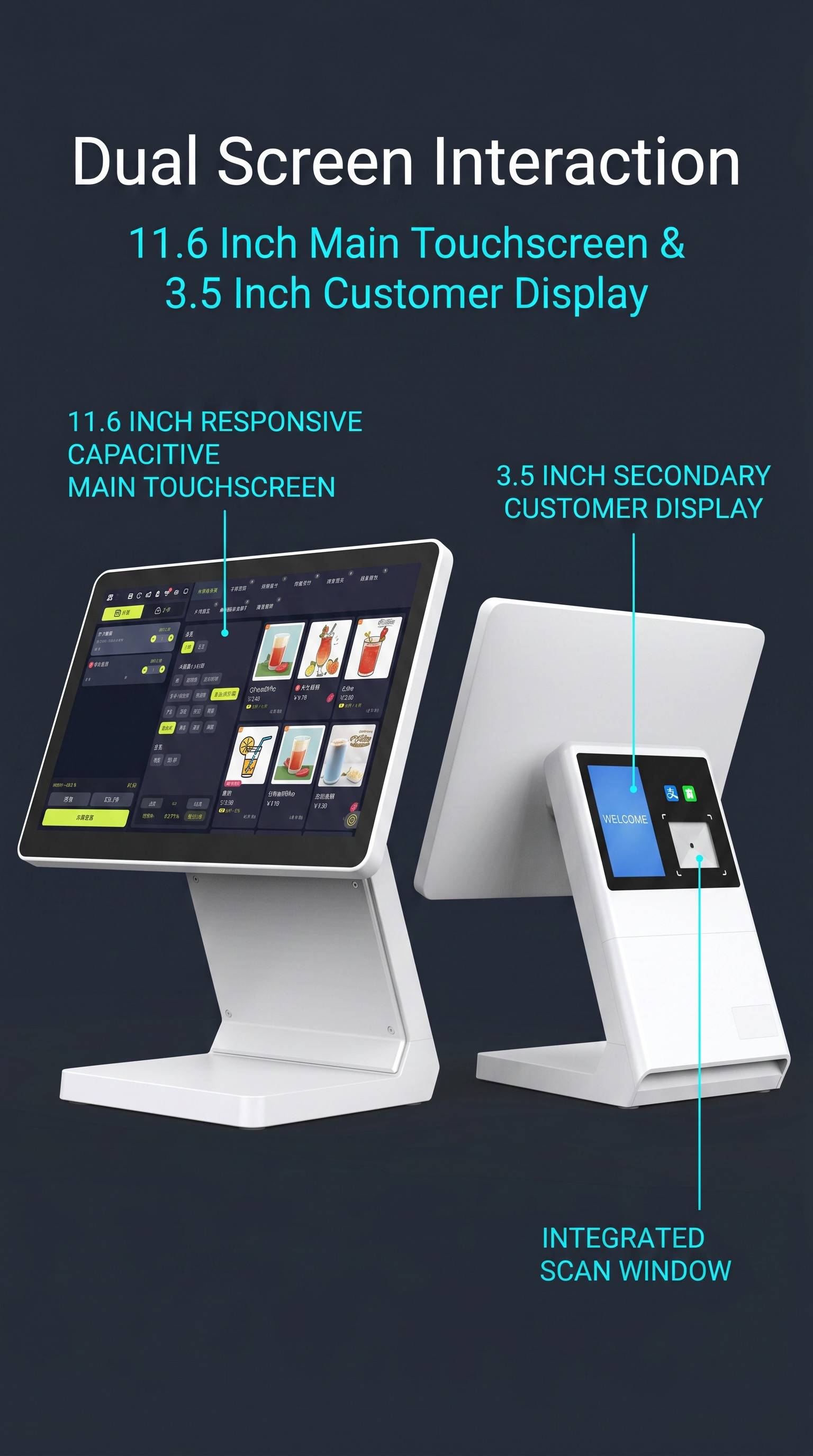

| Display | 11.6” 1366*768，3.5” 320*480 |
| Touch Screen | 11.6” Capacitive multi-touch |
| Dimensions | 286mm(L)*174mm(W)*302mm(H) |
| Main Display | 11.6”1366*768 |
| Secondary Display | 3.5”320*480 |

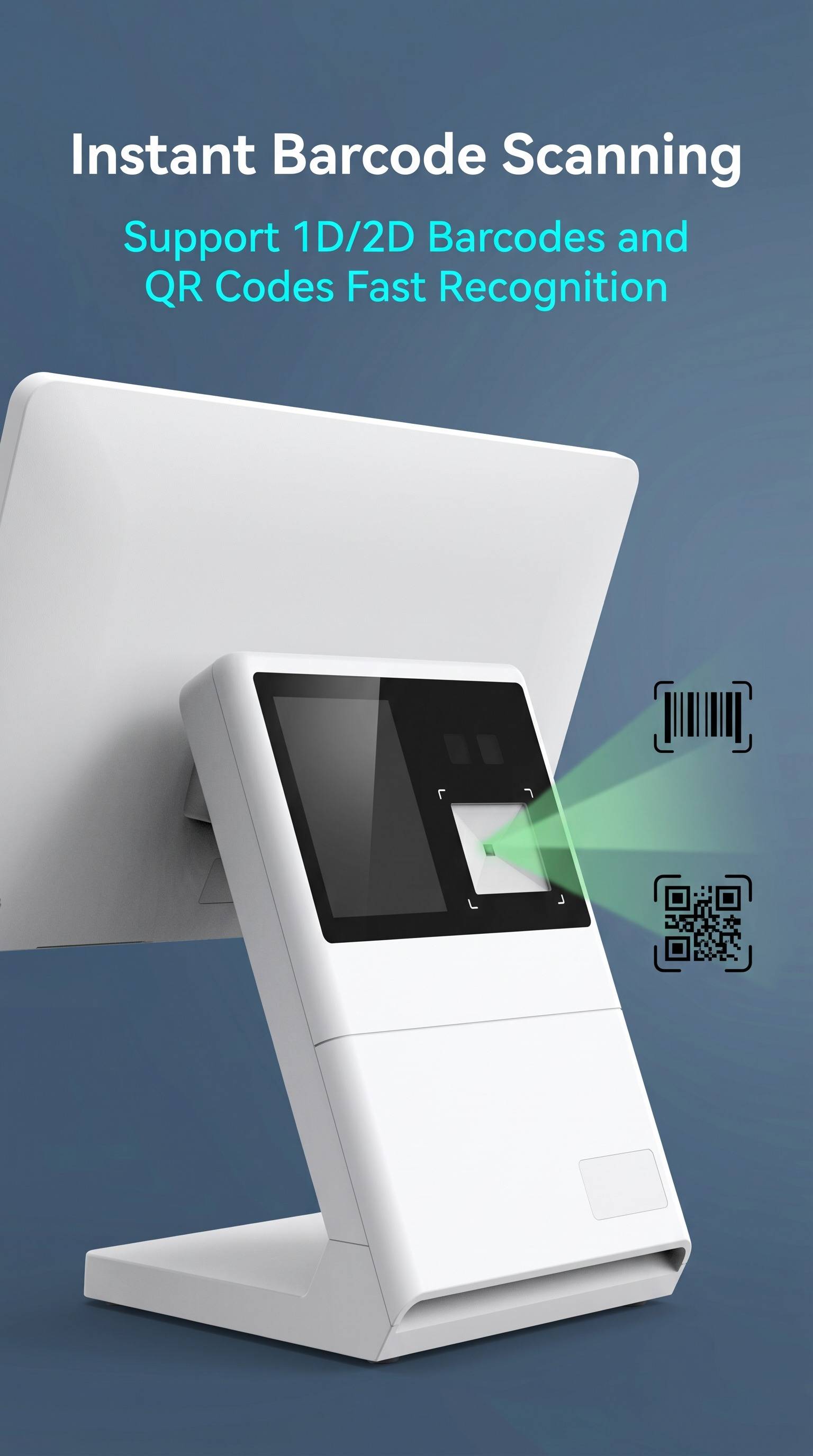

| Speaker | 1.5W*1 Scanner (Support 1D/2D barcode scanning) |
| Power Adapter | 12V/2A |
| Network | WiFi 2.4G Single-Band WiFi, BT BT4.2, Ethernet 100M |
| Buttons | Power on/off button *1 |

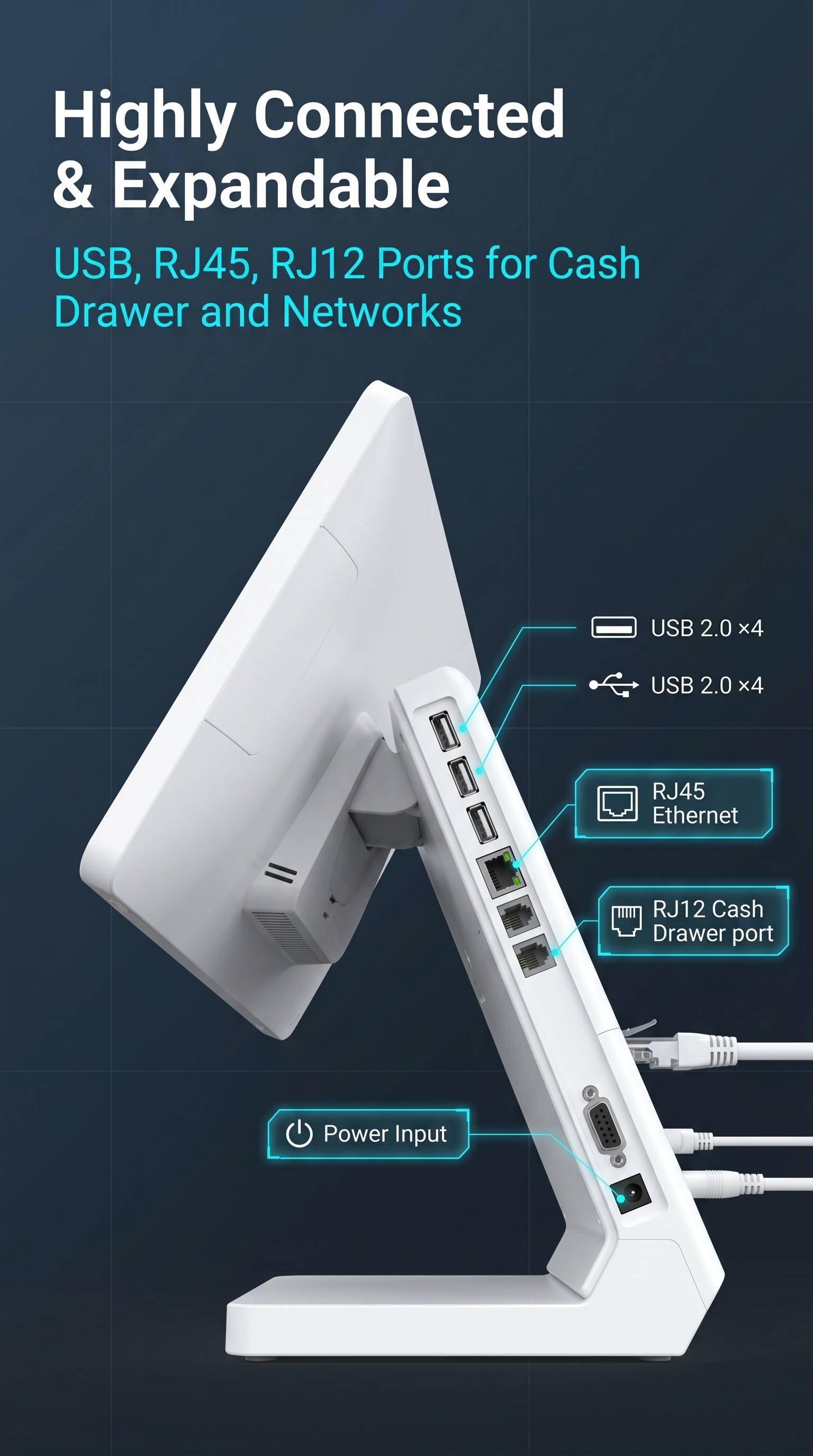

| Interface (External Ports) | RJ45*1 DC-IN*1 RJ12*1 USB2.0*4 Support: OTG*1 (Support Enternet Support 6P Cash Drawer) |
| Manufacturing Technology | Plastic Injection Molding + Texturing |
| Color | White Other colors available |

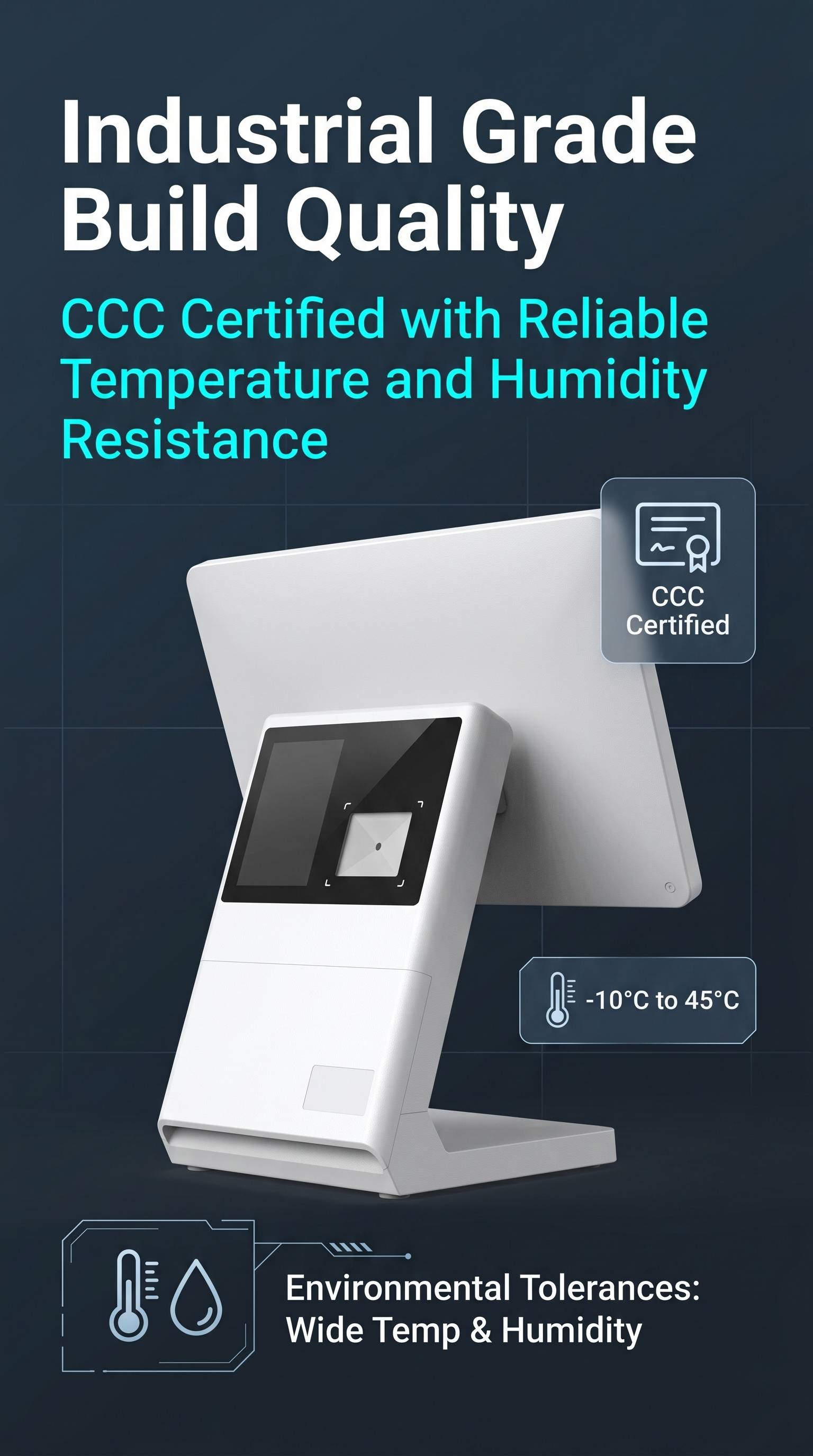

| Operating Environment | Temperature：-10~45℃ Humidity：5%~90%RH（No condensation） |
| Storage Environment | Temperature：-20~60℃ Humidity：10%~90%RH（No condensation） |
| Software System | Based on customer requirements |
| Certification | CCC |
Ficha técnica disponible bajo solicitud
