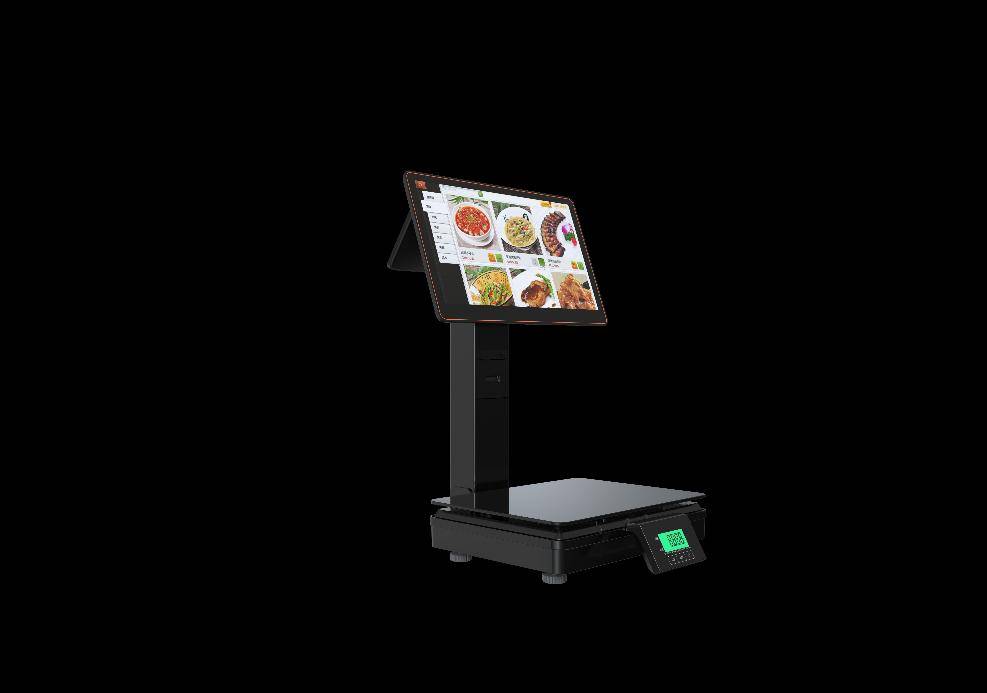

KBM-HS21-Smart-POS-Terminal

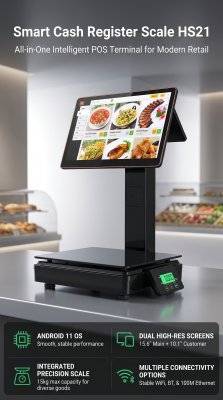

All-in-one retail POS: 15.6" touch main screen + 10.1" customer display + built-in 58mm thermal printer + integrated scale (6~15kg, 2/5g division). RK3568 2.0GHz quad-core, 2+16G. G+G capacitive touch. Dual-band WiFi 2.4G/5G, BT5.4, Ethernet. Full ports: USB×4, RJ45, RJ12 (cash drawer), OTG. Sturdy metal bracket + textured black body, wide-temp support (-10~45℃). Ultimate all-in-one solution for supermarkets, grocery stores, and fresh food retail.
Contact for Quote
In StockAll-in-one retail POS: 15.6" touch main screen + 10.1" customer display + built-in 58mm thermal printer + integrated scale (6~15kg, 2/5g division). RK3568 2.0GHz quad-core, 2+16G. G+G capacitive touch. Dual-band WiFi 2.4G/5G, BT5.4, Ethernet. Full ports: USB×4, RJ45, RJ12 (cash drawer), OTG. Sturdy metal bracket + textured black body, wide-temp support (-10~45℃). Ultimate all-in-one solution for supermarkets, grocery stores, and fresh food retail.

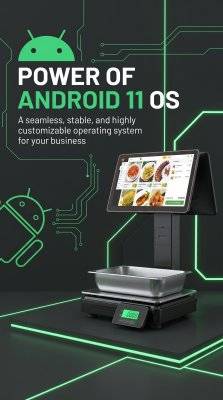

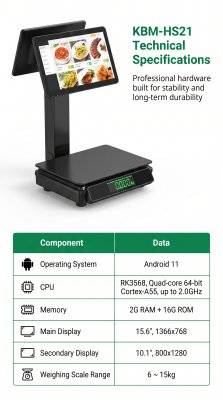

| Operating System | Android11 |
|---|---|
| CPU | RK3568, quad-core 64-bit, Coretex-A55, up to 2.0GHz |
| Memory | 2G RAM + 16G ROM |
| Display | 15.6” 1366*768，10.1” 800*1280 |
| Touch Screen | 15.6” G+G Capacitive multi-touch |
| Dimensions | 381mm(L)*486mm(W)*560mm(H) |
| Main Display | 15.6”1366*768 15.6”1920*1080 ((optional)) |

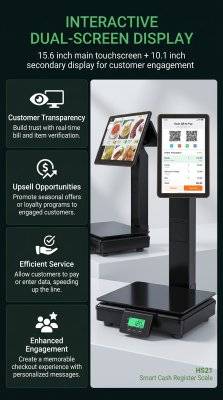

| Secondary Display | 10.1”800*1280 (15.6”(optional)) |
| Speaker | 3W*1 |
| Printer | 58mm thermal printer (No printer (optional)) |

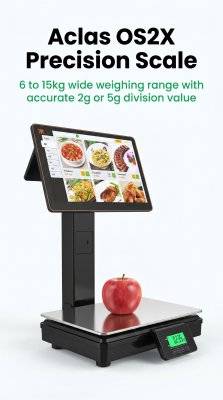

| Weighing Scale | Range: 6~15kg, Division value: 2/5g, Minimum Capacity: 40g Aclas OS2X |
| Power Adapter | 12V/3A |
| Network | WiFi 2.4G /5G Dual-Band WiFi, BT BT5.4, Ethernet 100M |
| Buttons | Power on/off button *1 |

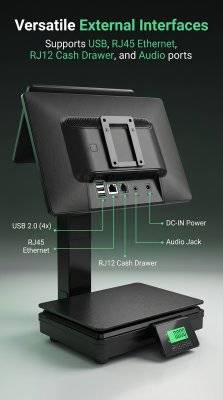

| Interface (External Ports) | RJ45*1 DC-IN*1 Audio jack*1 RJ12*1 USB2.0*4 Support: OTG*1 (Support Enternet Support 6P Cash Drawer) |
| Manufacturing Technology | Plastic Injection Molding + Texturing + Metal Bracket |
| Color | Black |
| Operating Environment | Temperature：-10~45℃ Humidity：5%~90%RH（No condensation） |
| Storage Environment | Temperature：-20~60℃ Humidity：10%~90%RH（No condensation） |
| Software System | Based on customer requirements |
| Certification | CCC |
Product datasheet available upon request
